    83943 Flange-90° Elbow Hydraulic Hose Fitting
    43 Series Fittings
    ISO 12151-3 – E90S – L (1 Piece: ISO 12151-3 – E90M – L)

    Own Brand: Gemco
    Model: 83943 Flange
    Executive Standard：GEMCO Standard
    Optional Material：Carbon steel, 304, 316
    Thread Form：Metric, US, Imperial
    Stripping Form：NO-SKIVE
    Fitting Advantage：Simple and easy to operate, reduce labor costs
    Use with hose: 1SN,2SN,R1AT,R2AT,1SC,2SC,R16,R17,2ST,1SK,2SK,R3,R4,R6,1TE,2TE,3TE

    Send inquiry live chat

    GEMCO is a hydraulic system products factory integrating R&D, production, wholesale and sales. It provides the production, testing and delivery of high pressure ball valves hydraulic hoses assembly, quick coupling, connectors, assemblies and other industrial partes for various hydraulic demand fields domestic and abroad. One-stop service with high quality and fast delivery is available.

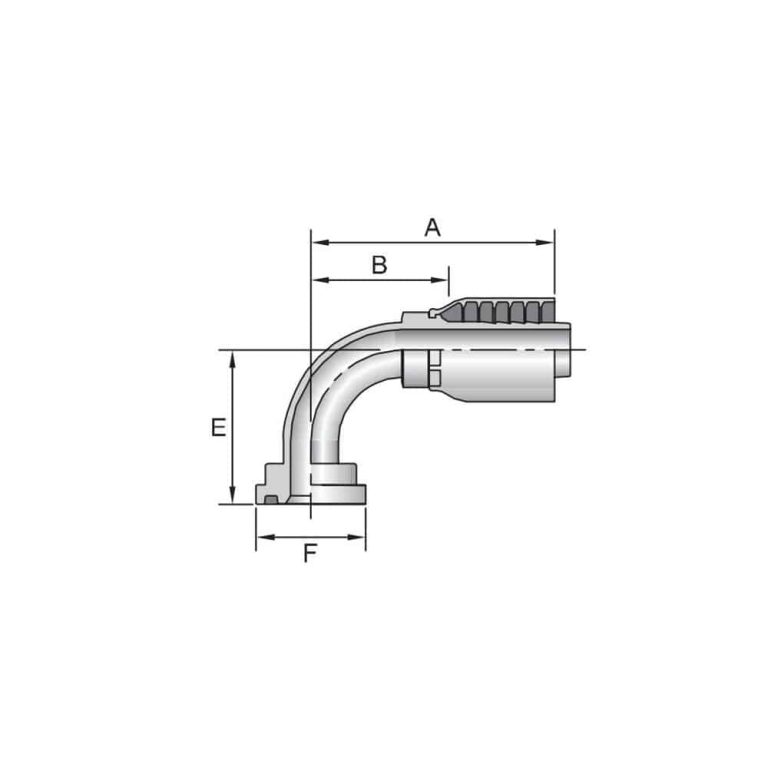

    Part NumberFlangeinchHose l.D.inchA
    inch    		A
    mm    		E
    inch    		E
    mm    		F    inchB inchB mm
    83943-8-8
    83943-10-10
    83943-12-8    		1/2
    5/8
    3/4    		1/2
    5/8
    1/2    		2.93
    3.71
    2.93    		74
    94
    74    		1.60
    2.10
    1.66    		41
    53
    42    		1-3/16
    1-11/32
    1-1/2    		2.66
    3.07
    3.37    		42
    58
    42
    83943-12-10
    83943-12-12
    83943-16-8    		3/4
    3/4
    1    		5/8
    3/4
    1/2    		3.71
    3.51
    2.91    		94
    89
    74    		2.10
    2.28
    2.03    		53
    58
    52    		1-1/2
    1-1/2
    1-3/4    		2.27
    2.07
    1.65    		58
    53
    42
    83943-16-12
    83943-16-16
    83943-20-16    		1
    1
    1-1/4    		3/4
    1
    1    		3.59
    4.28
    4.25    		91
    109
    108    		2.24
    2.78
    2.76    		57
    71
    70    		1-3/4
    1-3/4
    2    		2.15
    2.66
    2.63    		55
    68
    67
    83943-20-20
    83943-24-20
    83943-20-24    		1-1/4
    1-1/2
    1-1/4    		1-1/4
    1-1/4
    1-1/2    		5.12
    5.09
    4.19    		130
    129
    106    		3.54
    3.54
    2.49    		90
    90
    63    		2
    2-3/8
    2    		3.43
    3.40
    2.82    		87
    86
    72
    83943-24-24
    83943-32-24
    83943-32-32    		1-1/2
    2
    2    		1-1/2
    1-1/2
    2    		5.50
    5.48
    6.75    		140
    139
    171    		3.11
    3.10
    5.43    		79
    79
    114    		2-3/8
    2-13/16
    2-13/16    		4.13
    4.11
    4.97    		105
    104
    126
